 Message Boards » » pontiac grand prix electrical problem Page [1]
BettrOffDead
All American
12559 Posts
user info
edit post

i got a '95, and my security light is blinking. i guess pontiac put a factory security system in it. also, it disables the starter. also i have pulled all my fuses out and put them back in and i have disconnected and reconnected the battery. also, i have a key with a "chip" in it.

given all of these things, does anyone have any idea for a solution?

9/3/2006 11:07:38 PM

Aficionado
Suspended
22518 Posts
user info
edit post

not until you give some more detail

9/3/2006 11:09:40 PM

optmusprimer
All American
30318 Posts
user info
edit post

clean your contacts in the cylinder or totally disable the whatchacallit. noooone is gonna steal your shit dude.


want to buy some phat ass new bville rims and vogues???

9/3/2006 11:39:29 PM

BettrOffDead
All American
12559 Posts
user info
edit post

ok what more informatiuon


its a factory security precaution that when tripped, disables my starter.


how can i get around it?


i disabled fuses and battery hoping to reset whatever fucked up... is myt key fucked? is my fuse box fucked?

9/4/2006 3:29:40 AM

BettrOffDead
All American
12559 Posts
user info
edit post

bttt n00bs

9/4/2006 1:46:19 PM

dannydigtl
All American
18302 Posts
user info
edit post

you could fix it but...youre probably better off dead.

[Edited on September 4, 2006 at 1:48 PM. Reason : fgfg]

9/4/2006 1:48:30 PM

BettrOffDead
All American
12559 Posts
user info
edit post

bttt need help

9/4/2006 6:31:12 PM

optmusprimer
All American
30318 Posts
user info
edit post

ok have you got any electrical knowledge at all?

9/4/2006 6:37:46 PM

ncstateccc
All American
2856 Posts
user info
edit post

those chips on the keys go bad over time, try getting another key made or use your spare key

9/4/2006 9:39:46 PM

69
Suspended
15861 Posts
user info
edit post

you need to ground the dark blue wire going into the theft deterrent module to enable the fuel pump, and ground the yellow wire with black tracer to enable the starter solenoid. its behind the glove box, if you take it out, you'll see a small 4" by 4" or so box with one or two relays beside it on the firewall, the plug on the drivers side of the module is where you need to locate the above mentioned wires

yall niggas dont know shit about stealin cars

if you want the light to stop blinking, clip the gray wire

[Edited on September 4, 2006 at 10:43 PM. Reason : if you want me to disable the whole system for ya i could do it next week sometime]

9/4/2006 10:41:14 PM

optmusprimer
All American
30318 Posts
user info
edit post

could just as easily solder the correct resistor(s) in line with the wires going to the switch.

9/4/2006 11:16:06 PM

69
Suspended
15861 Posts
user info
edit post

^ that shit aint ghetto enough, but if you do, its just the white wires going to the ignition swith plug in the steering column

9/5/2006 7:09:29 AM

optmusprimer
All American
30318 Posts
user info
edit post

im sure there are more detailed details on

http://www.glubgp.com

9/5/2006 12:54:45 PM

jatncstate
All American
724 Posts
user info
edit post

to see if your key is bad you should be able to measure the resistance of the chip using a digital multimeter. If it reads 0 or Infinity I would recommend a new key. Otherwise

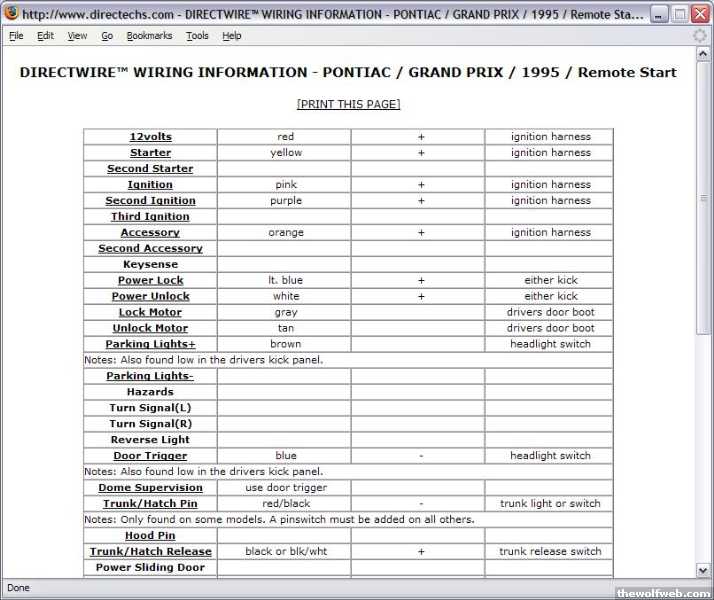

normally there should be a factory alarm disarm wire. I did not see one listed for this car, but here are the color codes for the ignition harness to test to see if voltage is getting to the key cylinder.

9/5/2006 1:33:29 PM
